For use in the warehouse we offer the electric storage and retrieval unit IHF-Depomat. It can be moved in a rail-system on the ceiling. The electro-hydraulic compact lift truck IHF-Storomat can be moved freely on the floor.

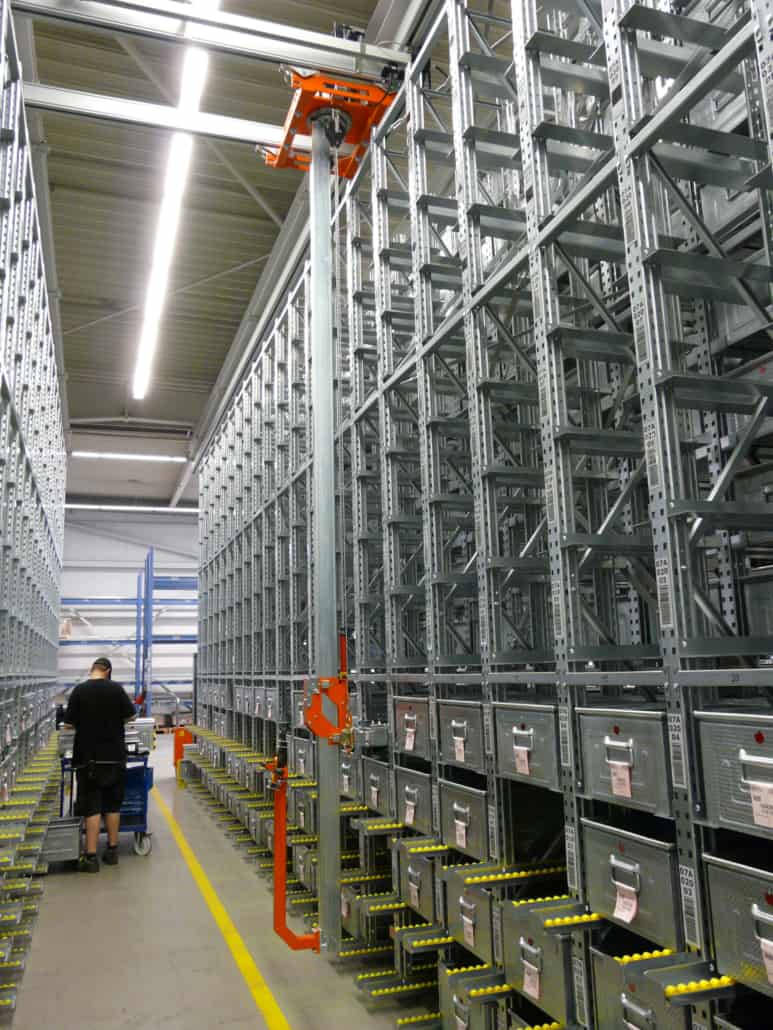

IHF-Depomat
The storage and retrieval unit IHF-Depomat was developed to load and unload shelves with small and medium workloads. Mounted to a trolley, which moves in a rail-system along the horizontal axis X and Y, IHF-Depomat also covers the vertical axis Z. It can rotate approximately 330 ° around axis Z.
IHF-Depomat has a load capacity from 125 to 400 kg, an eccentric load of up to 1000 Nm and a stroke from 1.5 to 5 m. The load is lifted and lowered by using push-buttons of an electric control. The height of the control remains constant regardless of the height of the elevator slide.
We deliver the IHF-Depomat as a preassembled unit including the controls and an elevator slide as a standardized interface to the gripping device. There is almost no restriction on the construction and function of the gripping device. These could work as a positive load fork, as a pneumatically operated gripper or with vacuum technology. The most common use case is the moving of boxes and containers in and out of shelves. In other cases cardboard packaging material, ceramics or pallets were moved or complete workpieces were put into a test stand.
max. load capacity
max. stroke
Rotate
max. eccentric load
IHF-Storomat
The mobile and compact high-lift truck IHF-Storomat is designed as lifting device for universal purposes.
Regarding load capacity and moment of torsion but also regarding dimensions and tare weight the IHF-Storomat is classified below usual commercial lifting trucks. The IHF-Storomat can be used for jobs where such lifting trucks would be too big or too large. The IHF-Storomat has a load capacity from 125 to 250 kg, a maximum moment of torsion of up to 950 Nm and a stroke of 1.5 m.
A special feature can be optionally ordered: a trolley without brackets at the front. Because there is no space on the ground required the IHF-Storomat can be moved close to machines, pallets or cabinets.
The IHF-Storomat is manufactured as a solid and compact device with welded frame made from stable steel tubes. The IHF-Storomat consists of a trolley with two steering rollers with fasteners at the back and two fixed rollers at the front, a fixed mast and two brackets at the front. A long elevator slide and an optimized guiding at the mast supply a high moment of torsion. Using the two stable guiding bars an easy steering is possible.
The hydraulic cylinder pulls the elevator slide upwards using two roller chains. The velocity of lifting and lowering can be controlled without steps. The hydraulic overload protection is adjustable. At both end positions a valve stops lifting or lowering automatically. The hydraulic pump is supplied by a maintenance-free gel-battery with high capacity. Battery and charger are made in West Europe by a well known brand. The battery charger is special matched for the battery. The charger, a display for charge control and the plug-type connection are integrated in the housing.
max. load capacity
max. eccentric load
max. stroke
